Monitoring EC2 Instances using CloudWatch

In this article, We are going to perform Monitoring EC2 Instances using CloudWatch, enabling detailed monitoring and creating cloudwatch alarms.

Monitoring EC2 Instances using CloudWatch

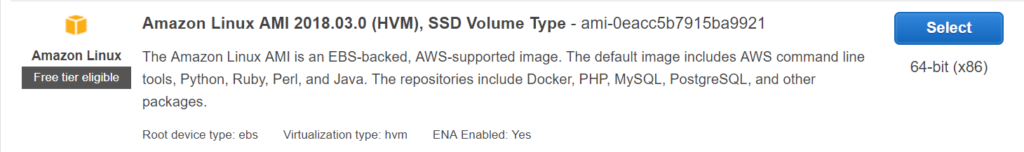

Step #1: Create a EC2 Instance.

create ec2 instance 1

Step #2: Allow Detailed Monitoring for the above Instance.

Note: Detailed Monitoring are chargeable

allow detailed monitoring 2

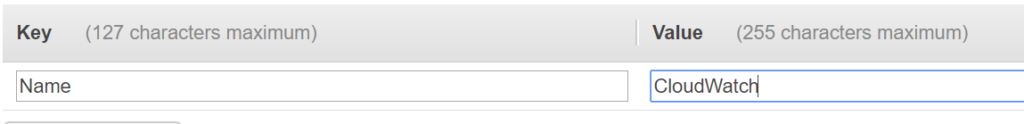

Step #3: Give the tag

enable cloudwatch detailed monitoring 2

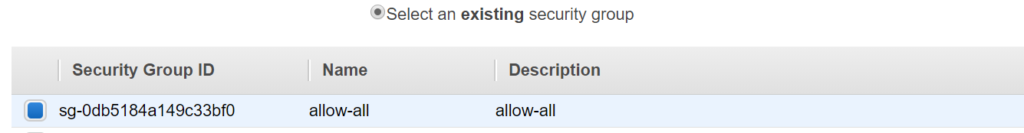

Step #4: Allow the Security Group

allow security groups 3

Step #5: Launch the Instance with the proper Key

Step #6: Go to the landing page of CloudWatch service

got to cloudwatch click on create dashboard 4

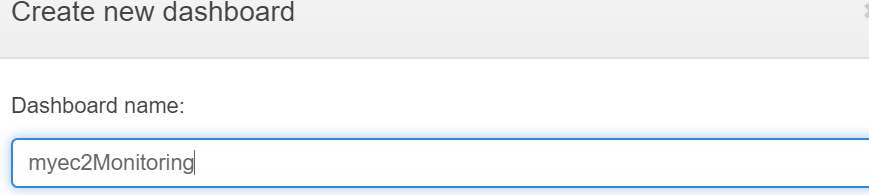

Step #7: Click on Create Dashboard, give the name of dashboard

enter cloudwatch dashboard name 5

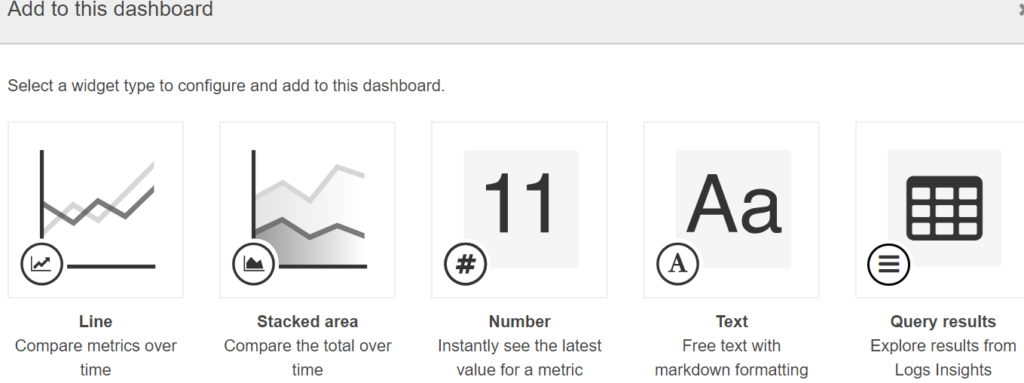

Step #8: Add any Widget, how you want to see the data of your ec2, We have selected the stacked area, you can select as well.

select cloudwatch dashboard type 6

Step #9: Now select the resource which you want to monitor

select the resource which you want to monitor 7

Step #10: Select EC2 and in EC2 Section select Per-Instance metrics

10.Select EC2 and in EC2 Section select Per Instance metrics 8

Step #11: Save the Above Data using , Save Widget button

save cloudwatch dashboard 9

Step #12: Till far we have created the Dashboard now it time to create the Alarm

click on cloudwatch alarm 10

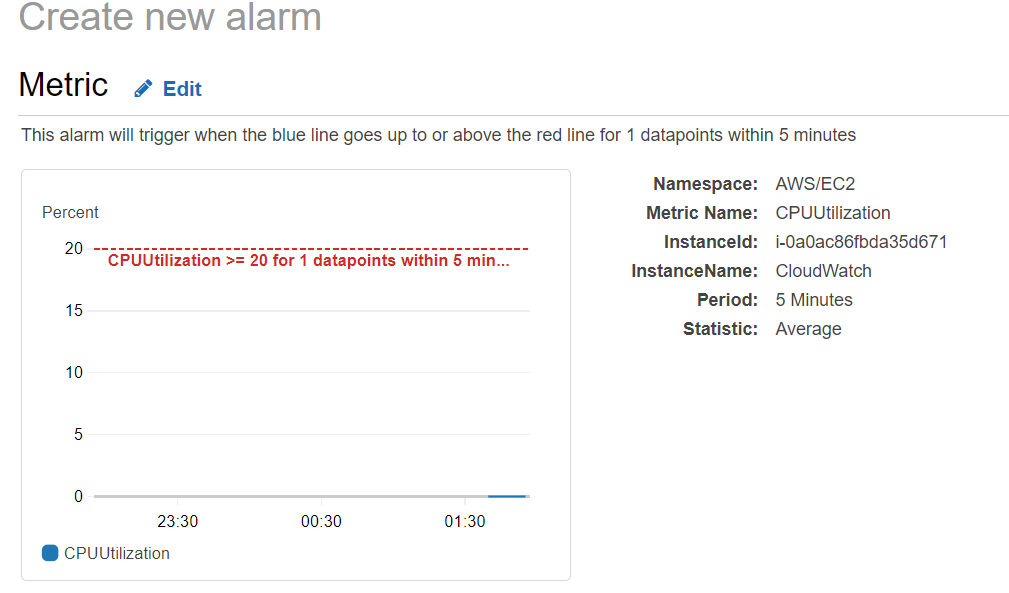

Step #13: Click on Create Alarm and then Select EC2 and in EC2 Section select Per-Instance metrics(CPU Utilization)

click on create new alarm 11

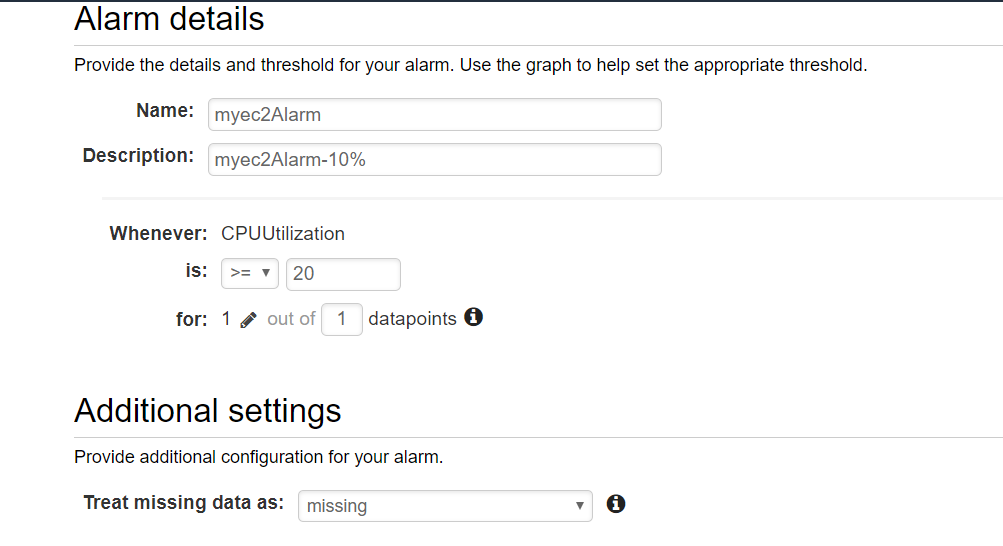

enter alarm details 12

enter alarm action details 13

Conclusion:

We have covered Monitoring EC2 Instances using CloudWatch, enabling detailed monitoring and creating cloudwatch alarms.
